Fixed Speed Pump Systems
Level Master
Fixed Speed - Level Control - Dual Pump - Start Stop - Pump Control Systems
Summary
Tech Specs
Ask a Question

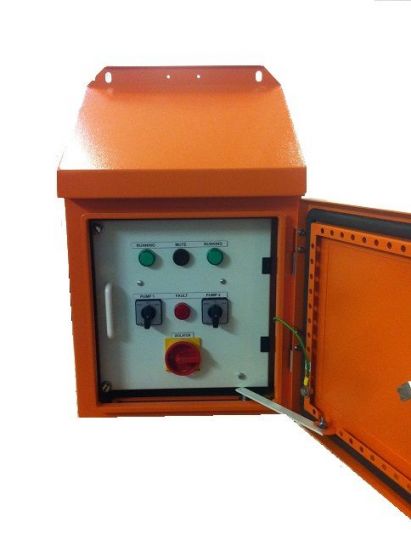

The Levelmaster control system provides level control for single or dual pump operation via floats.
Direct On Line
* One DOL motor starter per pump
Soft Starter
* One Basic Soft Starter per pump
System Options
* 3 Phase 400/415 VAC
* Single Phase 230/250 VAC
Enclosure Options
* Grey plastic (ABS) with lockable access window.
* Powder coated (RAL035 Oyster Grey), zinc primed enclosure with inner door.
* 316 Stainless Steel - Plain or X15 Orange
* Pilbara Mine Spec - Plain or X15 Orange
Notes
* The standard configuration is not suitable for installation in direct sunlight, enquire for other options.
* Maximum ambient operating temperature: 50C, higher temperatures available on request.
* Maximum relative humidity: 95%, non-condensing.
* The standard 3 Phase 400/415 VAC systems require a neutral.
* One DOL motor starter per pump
Soft Starter
* One Basic Soft Starter per pump
System Options
* 3 Phase 400/415 VAC
* Single Phase 230/250 VAC
Enclosure Options
* Grey plastic (ABS) with lockable access window.
* Powder coated (RAL035 Oyster Grey), zinc primed enclosure with inner door.
* 316 Stainless Steel - Plain or X15 Orange
* Pilbara Mine Spec - Plain or X15 Orange
Notes
* The standard configuration is not suitable for installation in direct sunlight, enquire for other options.
* Maximum ambient operating temperature: 50C, higher temperatures available on request.
* Maximum relative humidity: 95%, non-condensing.
* The standard 3 Phase 400/415 VAC systems require a neutral.
The Levelmaster control system provides level control for single or dual pump operation via floats. Featuring a simple flick of a switch operation, the Levelmaster is an easy to install and operate, level control system. The Levelmaster enables the user to select the features required by determining the number of floats installed, or tank emptying and filling, by the way the floats are arranged in the tank, or pit. The Levelmaster is suitable for use with any type of pump and is commonly used for filling tanks and sump draining.
Manuals
| File | |
|---|---|
|
Level Master Manual
Adobe Portable Document Format
LMF Manual-3-04-14.pdf
|
Download (3.71 MB) |
|
Flip Flop philosophy
Adobe Portable Document Format
Level Master flip-flop Description.pdf
|
Download (10.58 kB) |
|
Techsys LMF Data Sheet
Adobe Portable Document Format
Techsys LevelMaster Data Dheet.PDF
|
Download (282.30 kB) |
