Fixed Speed Pump Systems
Barracouta
Model: BARRACOUTA:BL-S/BL-M
Fixed Speed, Pressure or Level, Dual Pump, Start Stop, Systems
Summary
Tech Specs
Ask a Question

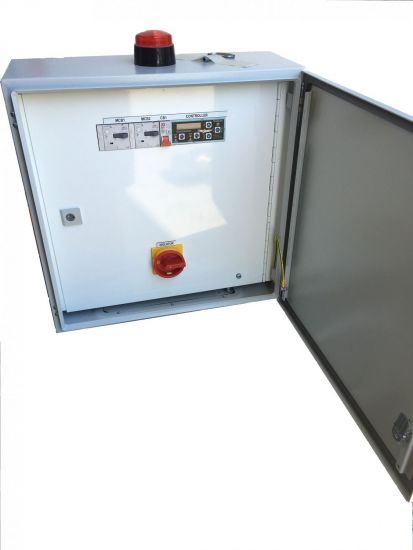

The Barracouta is a fixed speed pump control system which means pumps will either be running at full speed or stopped. The Barracouta can operate in either Level, or Pressure control mode.
Features:
* Suitable for 1 to 2 pump applications.
* Single phase or 3 Phase pumps.
* Supports Dynamic pump rotation & Duty/Standby/Backup operation.
* DOL or Soft starter
* 0-25 Bar Pressure Transducer. (Pressure version only)
* Mild Steel Powder Coated enclosure IP54 or ABS Plastic with access window.
* Paddlockable Main isolator.
* Motor circuit breaker for each pump.
NOTES:
* The standard configuration is not suitable for installation in direct sunlight.
* Maximum operating temperature: 45C, higher available on request.
* Max. relative humidity 95% non-condensing.
* Designed for 3 Phase 415vAC supply with neutral.
* Limited pump sizes due to enclosure size.
* Suitable for 1 to 2 pump applications.
* Single phase or 3 Phase pumps.
* Supports Dynamic pump rotation & Duty/Standby/Backup operation.
* DOL or Soft starter
* 0-25 Bar Pressure Transducer. (Pressure version only)
* Mild Steel Powder Coated enclosure IP54 or ABS Plastic with access window.
* Paddlockable Main isolator.
* Motor circuit breaker for each pump.
NOTES:
* The standard configuration is not suitable for installation in direct sunlight.
* Maximum operating temperature: 45C, higher available on request.
* Max. relative humidity 95% non-condensing.
* Designed for 3 Phase 415vAC supply with neutral.
* Limited pump sizes due to enclosure size.
The Barracouta is a fixed speed pump control system which means pumps will either be running at full speed or
stopped. The Barracouta can operate in either Level, or Pressure control mode. In Level control mode, floats are used to operate at the desired levels or alternatively, connect a level sensor to manage the tank level according to the programmed levels. For pressure control applications, a pressure transducer is supplied and the Barracouta will stop and start pumps according to the pressure settings.The Barracouta is commonly used to empty or fill tanks, or to run smaller building or mine site systems. There are in-built features to help protect the system when faults occur.
Manuals
| File | |
|---|---|
|
Barracouta Level Manual
Adobe Portable Document Format
Barra Level Manual V1_9.pdf
|
Download (3.27 MB) |
|
Barracouta Data Sheet
Adobe Portable Document Format
Barracouta 1811 Release - Features TE NP.pdf
|
Download (432.67 kB) |
|
Barracouta Pressure Manaul
Adobe Portable Document Format
BarraPressure Manual V1_8.pdf
|
Download (865.48 kB) |
|
How to connect your floats
Adobe Portable Document Format
Barracouta Standard Float Connections.pdf
|
Download (312.31 kB) |
