Variable Speed Pump Systems
Minke
Model: MINKE:-MIAV/MILLD/MILLS
Constant Pressure, Variable Flow, Pump Control Systems
Summary
Tech Specs
Ask a Question

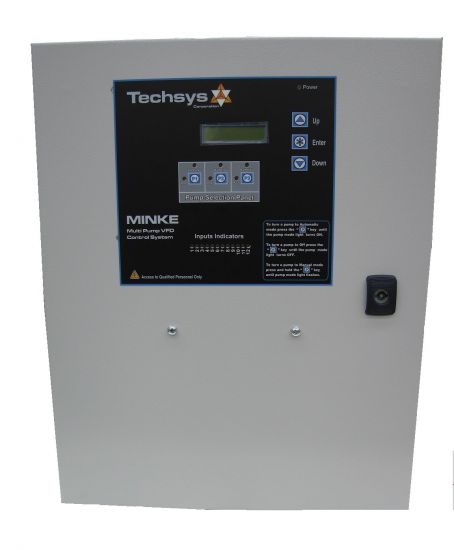

The MINKE pump controller provides fully integrated pressure control for pump stations operating up to 3 pumps. MINKE is designed to suit the needs of the budget conscience customer.
Features:
* Suitable for 1 to 3 Pumps.
* Standard with Vacon 20 VFDs.
* Powder Coated Mild Steel Enclosure (RAL7035).
* 0-25 Bar Pressure Transducer.
* Paddlockable Mains Isolator.
* Fan Forced Ventilation with removable filters.
* Circuit Breaker for each Pump.
NOTES:
* The standard configuration is not suitable for installation in direct sunlight.
* Maximum operating temperature: 35C, higher available on request.
* Max. relative humidity 95% non-condensing.
* Designed for 3 Phase 415vAC supply with neutral.
* Max. pump size 7.5kW.
* Suitable for 1 to 3 Pumps.
* Standard with Vacon 20 VFDs.
* Powder Coated Mild Steel Enclosure (RAL7035).
* 0-25 Bar Pressure Transducer.
* Paddlockable Mains Isolator.
* Fan Forced Ventilation with removable filters.
* Circuit Breaker for each Pump.
NOTES:
* The standard configuration is not suitable for installation in direct sunlight.
* Maximum operating temperature: 35C, higher available on request.
* Max. relative humidity 95% non-condensing.
* Designed for 3 Phase 415vAC supply with neutral.
* Max. pump size 7.5kW.
The MINKE pump controller provides fully integrated pressure control for pump stations operating up to 3 pumps. MINKE is designed to suit the needs of the budget conscience customer. The MINKE is easy to use and suitable for any type of pump. The MINKE controller is specifically designed to help improve the overall efficiency, operation and protection of single or multipump systems.
Control Options:
AV ( All VFD)
LLS (Lead VFD, Lag Pump/s-Soft Start)
LLD ( Lead VFD, Lag Pump/s-DOL)
Only AV Supports automatic pump rotation, and Duty/Standby/Backup Operation
Manuals
| File | |
|---|---|
|
Minke Data Sheet
Adobe Portable Document Format
MINKE 3 22-7-11 GB.pdf
|
Download (2.58 MB) |
|
Minke Operational Manual
Adobe Portable Document Format
MINKE Manual Ver 4310.pdf
|
Download (1.46 MB) |
|
Minke VFD Parameter Sheet Vacon 20
Adobe Portable Document Format
Minke Vacon 20 Parameter Sheet.pdf
|
Download (70.46 kB) |
