Special Systems
Level Display Panel
Model: LDP

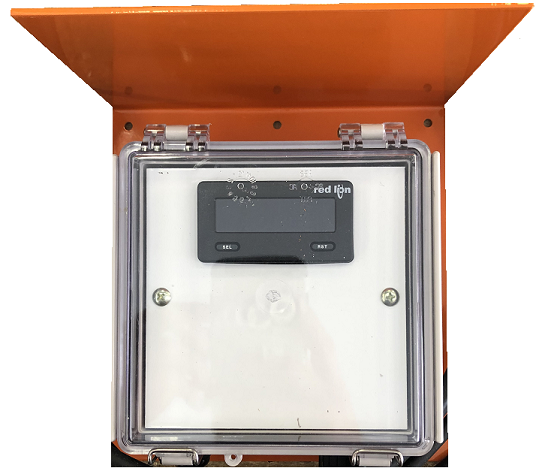

Level Display Panel
150x150x65 ABS (Plastic) enclosure with 5 digit 12mm LCD display for depth indication.
Requires a 240VAC supply from the control panel.
Display is mounted behind the front lid which is hinged & has stainless steel latches.
5 Mtr Neoprene cable with Clipsal 56P315 plug fitted.
Integrated IP66 breather to allow ventilation with moisture ingress.
150x150x65 ABS (Plastic) enclosure with 5 digit 12mm LCD display for depth indication.
Requires a 240VAC supply from the control panel.
Display is mounted behind the front lid which is hinged & has stainless steel latches.
5 Mtr Neoprene cable with Clipsal 56P315 plug fitted.
Integrated IP66 breather to allow ventilation with moisture ingress.
Summary
Tech Specs
Ask a Question
Sensor-
Piezoresistive stainless steel sensor
Accuracy 0.5 % FSO according to IEC 60770
Output signal - 2-wire: 4 ... 20 mA
Supply- VS = 8 ... 32 VDC
Materials (media wetted)
Housing- Stainless steel 1.4301
Seals- FKM
Diaphragm- Stainless steel 1.4435
Cable sheath- PVC (oil resistant)
Thermal effects (Offset and Span) / Permissible temperatures
Thermal error . +/- 0.3 % FSO / 10 K in compensated range 0 ... 70C
Permissible temperatures medium / electronics / environment / storage: -10 ... 70 C
Electrical protection- Short circuit protection, Reverse polarity protection no damage (but also no function).
Electromagnetic compatibility- Emission and immunity according to EN 61326
Ingress protection IP 68
Suitable for following media water, fuel oil
Weight approx. 300g
Piezoresistive stainless steel sensor
Accuracy 0.5 % FSO according to IEC 60770
Output signal - 2-wire: 4 ... 20 mA
Supply- VS = 8 ... 32 VDC
Materials (media wetted)
Housing- Stainless steel 1.4301
Seals- FKM
Diaphragm- Stainless steel 1.4435
Cable sheath- PVC (oil resistant)
Thermal effects (Offset and Span) / Permissible temperatures
Thermal error . +/- 0.3 % FSO / 10 K in compensated range 0 ... 70C
Permissible temperatures medium / electronics / environment / storage: -10 ... 70 C
Electrical protection- Short circuit protection, Reverse polarity protection no damage (but also no function).
Electromagnetic compatibility- Emission and immunity according to EN 61326
Ingress protection IP 68
Suitable for following media water, fuel oil
Weight approx. 300g
Sensor-
Piezoresistive stainless steel sensor
Accuracy 0.5 % FSO according to IEC 60770
Output signal - 2-wire: 4 ... 20 mA
Supply- VS = 8 ... 32 VDC
Materials (media wetted)
Housing- Stainless steel 1.4301
Seals- FKM
Diaphragm- Stainless steel 1.4435
Cable sheath- PVC (oil resistant)
Thermal effects (Offset and Span) / Permissible temperatures
Thermal error . +/- 0.3 % FSO / 10 K in compensated range 0 ... 70C
Permissible temperatures medium / electronics / environment / storage: -10 ... 70 C
Electrical protection- Short circuit protection, Reverse polarity protection no damage (but also no function).
Electromagnetic compatibility- Emission and immunity according to EN 61326
Ingress protection IP 68
Suitable for following media water, fuel oil
Weight approx. 300g
Piezoresistive stainless steel sensor
Accuracy 0.5 % FSO according to IEC 60770
Output signal - 2-wire: 4 ... 20 mA
Supply- VS = 8 ... 32 VDC
Materials (media wetted)
Housing- Stainless steel 1.4301
Seals- FKM
Diaphragm- Stainless steel 1.4435
Cable sheath- PVC (oil resistant)
Thermal effects (Offset and Span) / Permissible temperatures
Thermal error . +/- 0.3 % FSO / 10 K in compensated range 0 ... 70C
Permissible temperatures medium / electronics / environment / storage: -10 ... 70 C
Electrical protection- Short circuit protection, Reverse polarity protection no damage (but also no function).
Electromagnetic compatibility- Emission and immunity according to EN 61326
Ingress protection IP 68
Suitable for following media water, fuel oil
Weight approx. 300g
Manuals
| File | |
|---|---|
|
Data Sheet
Adobe Portable Document Format
Techsys Level Display rev 0.pdf
|
Download (1.35 MB) |
